برش MILLING برش TCT

Zhongyeda's durable TCT cutting milling cutter has excellent processing performance. It has a sharp blade design and extremely high cutting efficiency. It can quickly and accurately cut and mill the board, greatly shortening the processing time and improving production efficiency. Its cutting accuracy is also excellent, and it can achieve extremely small cutting errors. The edges of the processed boards are smooth and flat, which reduces the subsequent grinding and trimming processes, saving time and cost, and improving product quality.

TCT cutting milling cutter has a wide range of applications. In the furniture manufacturing industry, whether it is the production of solid wood furniture or panel furniture, it can efficiently complete the cutting of boards and help create high-quality furniture products; in cabinet making, it can accurately cut boards of various specifications to meet different design requirements; in the field of wooden door processing, it can accurately mill door panels and other components to ensure the beauty and quality of wooden doors.

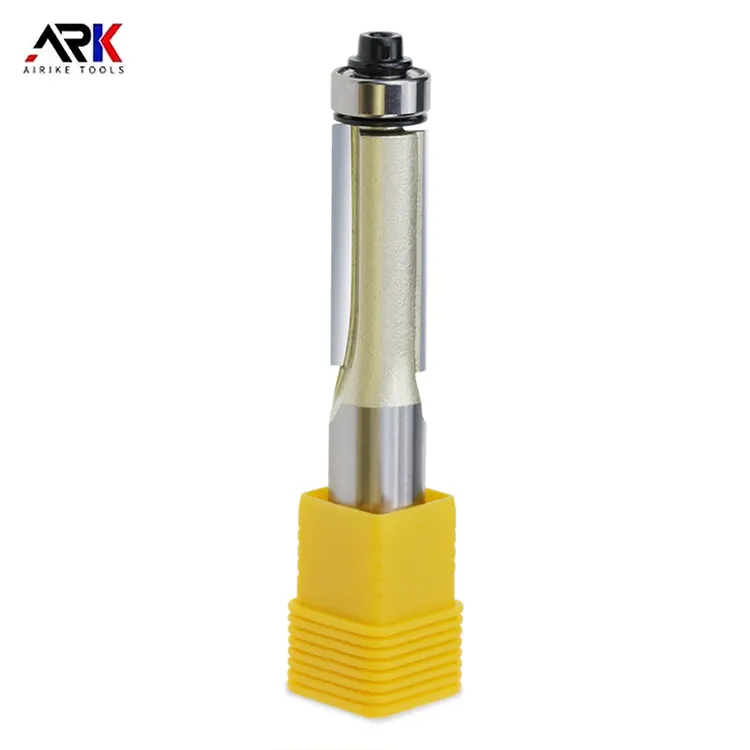

TCT cutting milling cutter is a solid carbide cutting milling cutter. The blade part is made of solid alloy material. It is usually composed of a handle and a head. The head is fixed on the handle and connected by high-frequency welding to ensure welding strength.

Excellent cutting performance

(1) Sharp cutting: TCT cutting milling cutter uses ultra-fine carbide blades with sharp blades. It can quickly and effectively cut various boards and improve processing efficiency.

(2) Smooth chip removal: The TCT milling cutter has a large chip space, and the spiral groove structure design allows wood chips to be discharged smoothly during the cutting process, which is not easy to be blocked, effectively reducing the tool temperature and extending the tool life.

(3) Smooth cutting surface: The surface of the processed board is smooth and burr-free, which significantly reduces the occurrence of chip sticking, knife sticking, and burning, and improves the quality of the processed product.

High processing stability

(1) Small tool vibration: The spiral groove structure allows the tool to continuously contact the board, the contact area increases, the load increases steadily, and the cutting edge continuously processes the board, which greatly reduces tool vibration, reduces working noise, and improves the surface appearance of the board.

(2) Strong rigidity: The tool cutting edge has strong rigidity, and the feed speed is twice that of ordinary straight knives. It can remain stable during high-speed cutting, is not easy to deform, and ensures processing accuracy.

Scope of application:

(1) Applicable to a variety of materials: Applicable to the processing of veneer particleboard, multi-layer board, solid wood, density board, plywood, acrylic, PVC, compact board and other boards.

(2) Multifunctional processing: It integrates trimming, grooving, cutting, engraving, drilling, bottom cleaning, and rounding functions to meet different processing needs.

Long service life

(3) Good wear resistance: The tool is made of high-quality alloy, and the tool body is heat-treated. It has high hardness and wear resistance, can withstand long-term cutting work, reduce the frequency of tool change, and improve work efficiency.

Firm welding: The tool head and the tool handle are connected together through high-frequency welding technology to ensure that the blade does not break, has no internal damage, and is not easy to break. It has excellent safety and further extends the service life of the tool.

Specifications

TCT cutting milling cutters have a variety of specifications and models. Common parameters include shank diameter, blade length, blade diameter, etc. For example, a 1/2 handle TCT double-edged compound knife may have a model number of 1/2x6x22x80L, 1/2x6x25x80L, etc., where 1/2 means the handle diameter is 1/2 inch, 6 means the blade diameter is 6mm, 22, 25, etc. means the blade length, and 80L means the total length of the tool is 80mm.

Application field scenarios

(1) Furniture manufacturing: used for the processing of board cutting, grooving, trimming and other processing processes for cabinets, wardrobes, tables and chairs, etc., to ensure the dimensional accuracy and surface quality of the furniture.

(2) Wood product processing: such as the production of wooden doors and windows, wooden floors, wooden crafts, etc., can process solid wood, plywood and other materials into various shapes to meet different design requirements.

(3) Decoration: In interior decoration, it can be used to cut and carve various boards to produce various decorative lines and shapes to enhance the decoration effect.

Precautions for use

(1) Tool selection: TCT cutting milling cutter should select appropriate tool specifications and models according to the thickness and properties of the processed material to avoid poor processing quality or tool damage due to improper tool selection.

(2) Fixture installation: Before using the TCT cutting milling cutter, check the fixture size to ensure that the fixture can provide sufficient clamping force to prevent the tool from vibrating or breaking the handle during processing.

(3) Processing parameter setting: TCT cutting milling cutter should reasonably set parameters such as processing speed and feed rate according to the characteristics of the tool and material. The harder the material, the slower the cutting speed and the higher the speed should be.

(4) Tool maintenance: Keep the tool clean after use and put the unused tool back into the packaging box to prevent tool damage. When the tool is not sharp, replace it with a new one. Do not sharpen it yourself to avoid affecting the processing quality.
